XINPUGUANG Solar Panel 300w 400w 200w 100w Flexible Monocrystalline Solar Cell Photovoltaic Solar Panels Kit 12V Battery Charger
$560.25
Condition: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
Description:
XINPUGUANG Solar Panel 300w 400w 200w 100w Flexible Monocrystalline Solar Cell Photovoltaic Solar Panels Kit 12V Battery Charger
Packing listing
1pcs 100w flexible solar panel
or
2pcs 100w flexible solar panel
or
3pcs 100w flexible solar panel
or
4pcs 100w flexible solar panel
or

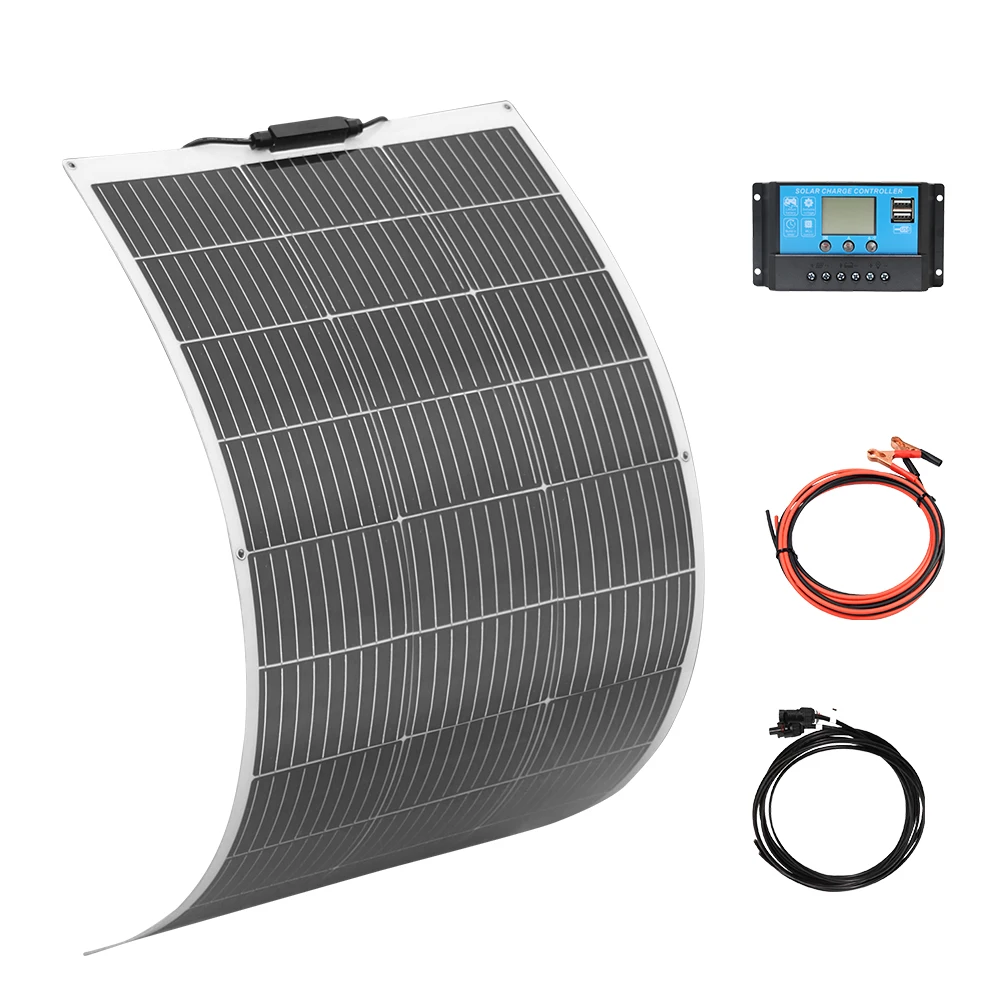

100w solar system= 1pcs 100w 12v flexible solar panel +12V/24V 10A solar charger controller+1 set 3 meters cable with PV connector +1 Set 3 meter cable with Alligator clip

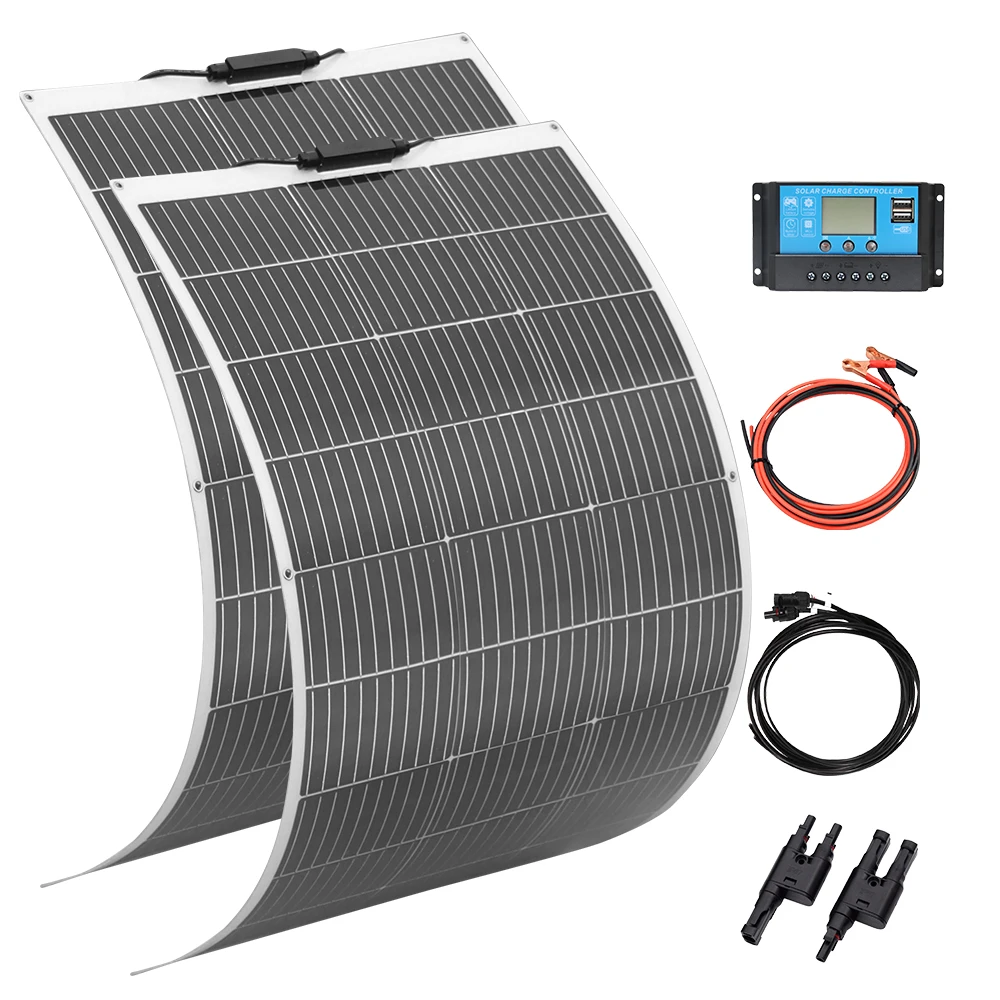

200w solar system= 2pcs 100w 12v flexible solar panels（solar panel only）+12V/24V 20A solar charger controller+1 set 3 meters cable with PV connector +1 Set 3 meter cable with Alligator clip +1 set 2 in 1 adapter
300w solar system= 3pcs 100w 12v flexible solar panels +12V/24V 30A solar charger controller+1 set 3 meters cable with PV connector +1 Set 3 meter cable with Alligator clip +1 set 3 in 1 adapter
400w solar system= 4pcs 100w 12v flexible solar panels +12V/24V 40A solar charger controller+1 set 3 meters cable with PV connector +1 Set 3 meter cable with Alligator clip +1 set 4 in 1 adapter
Specification100W Solar panel
Maximum power(Pmax) 100W
Output tolerance 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 19.2V
Short circuit current(Isc) 6.87A
Maximum power voltage(Vmp) 16V
Maximum power current(Imp) 6.25A
Cell efficiency 22%
Operating temperature（NOCT）45±2℃
Temperature range -20℃～+80℃
Number of cells 32pcs
Weight 1.9KG

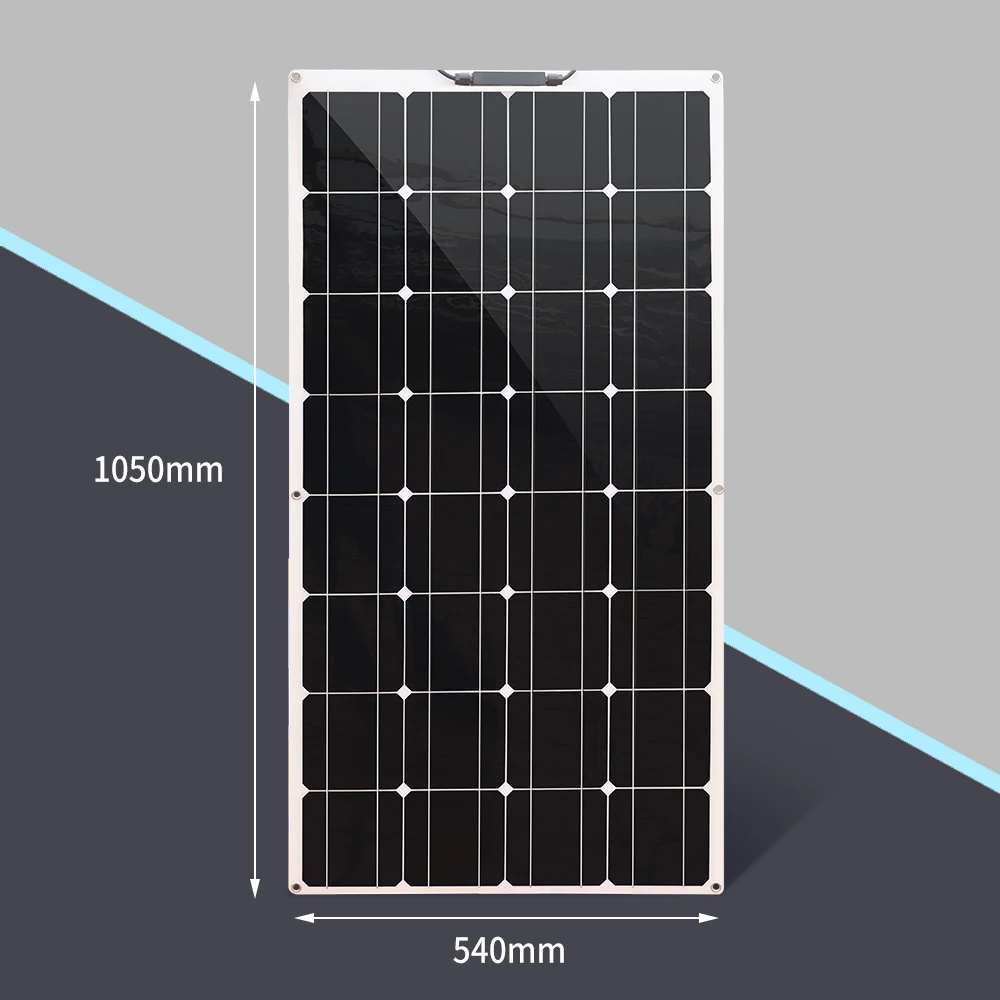

Size 1050*540*3mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
19.8V 100W Flexible solar panel Specification
Maximum power(Pmax) 100W
Maximum system voltage 700V DC
Open circuit voltage(Voc) 23.76V
Short circuit current(Isc) 5.55A
Maximum power voltage(Vmp) 19.8V
Maximum power current(Imp) 5.05A
Weight 1.9KG

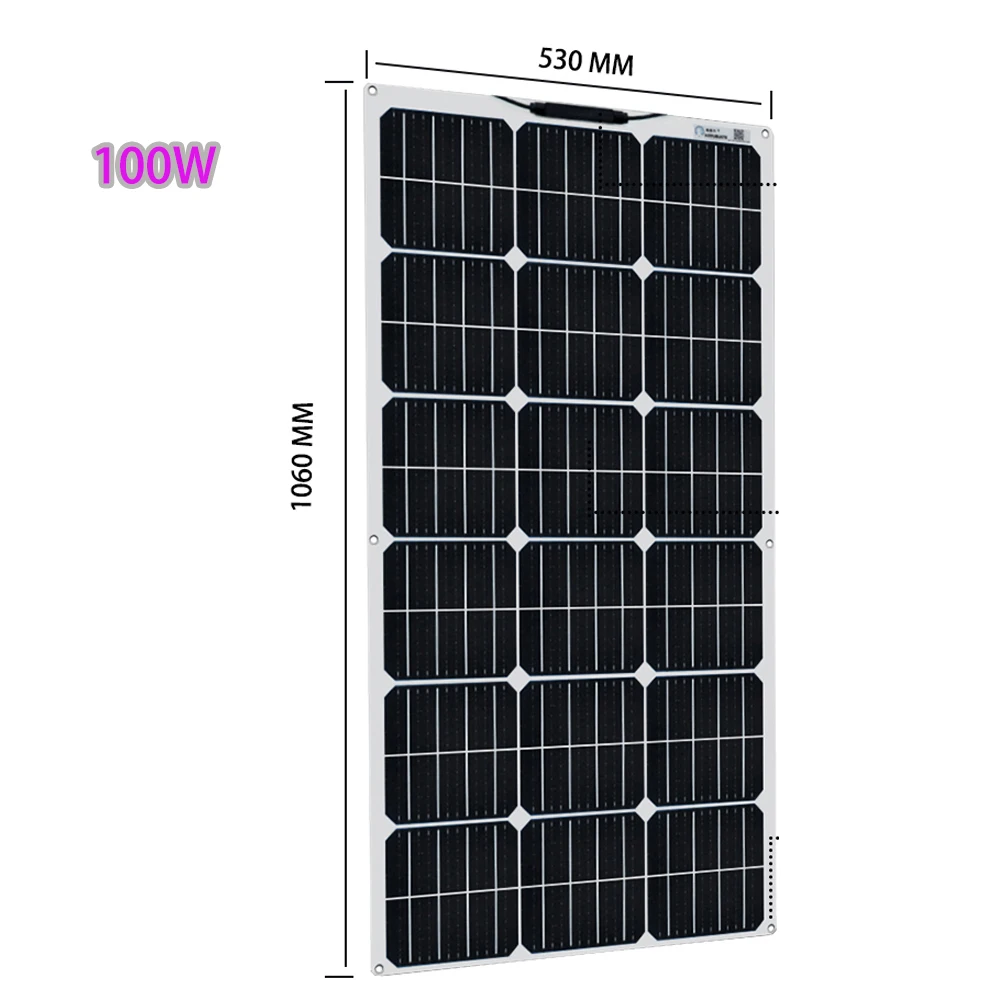

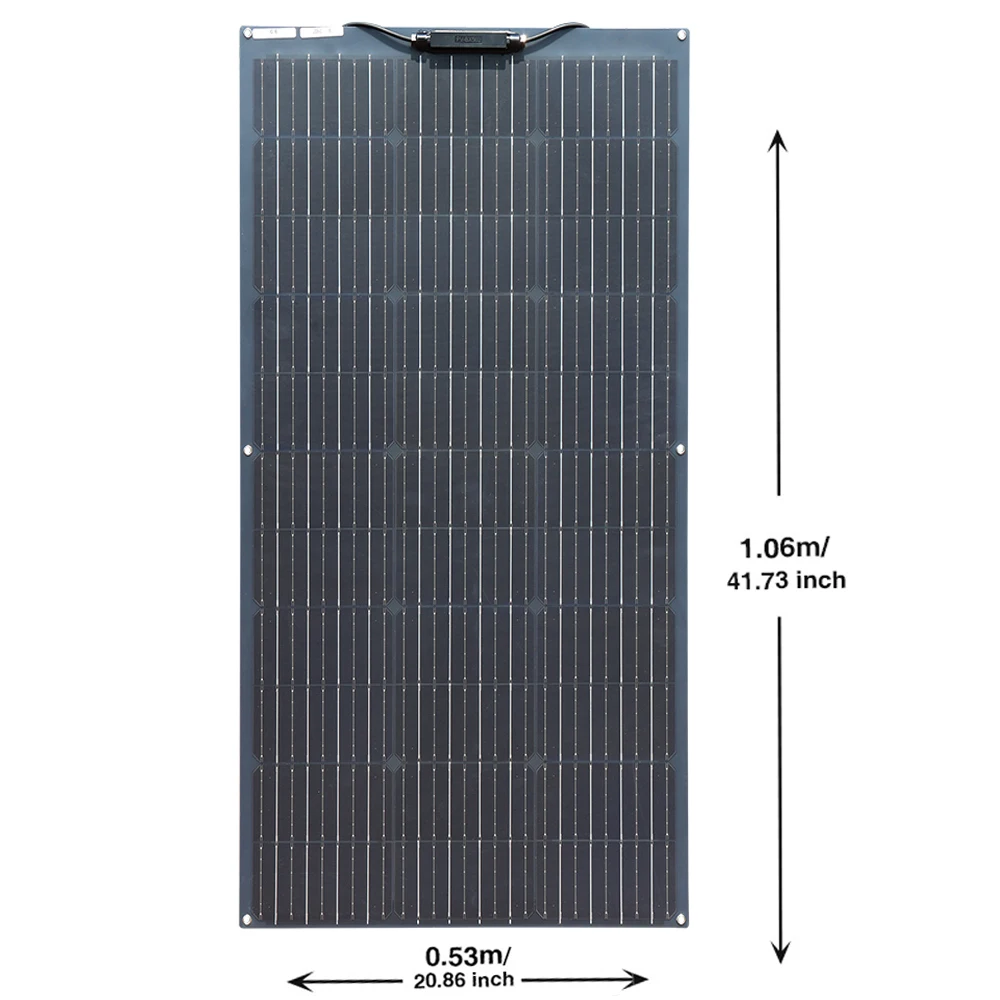

Size 1060*530*2.5mm / 955*530*2.5mm
Operating temperature(NOCT) 45 plus or minus 2 Celsius system
STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
Package List
100W Solar Panel=1 pcs 100W flexible solar panel
Solar Panel Black or white color available
OR

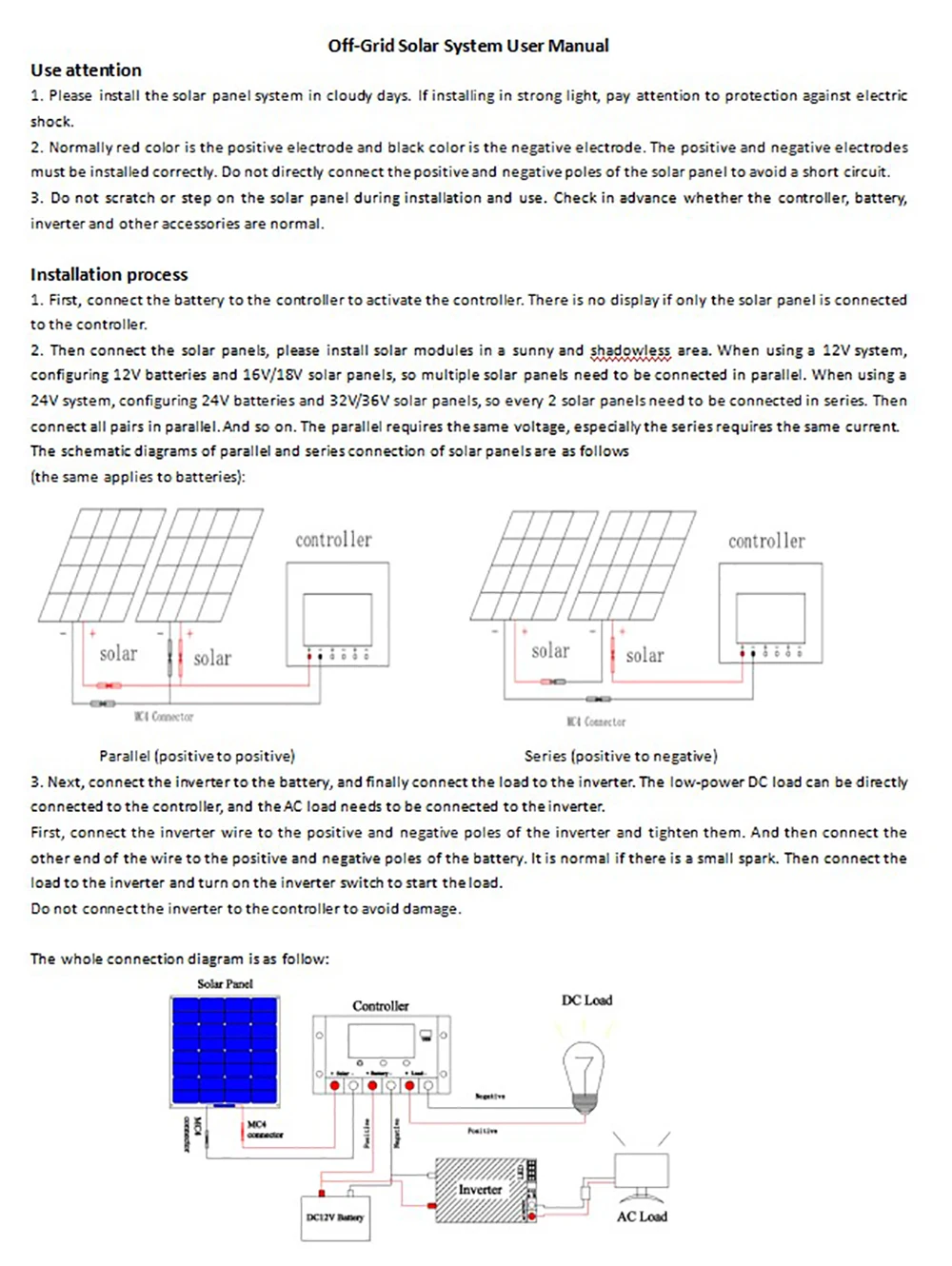

Solar panel connection installation method
When you use a 12V battery, use a parallel connection; when you use a 24V battery, use two serial connections. Please install the solar panel on a smooth surface with good sunlight and no shadow, and try not to install it on uneven areas. Solar panels can be fixed with glue or bolts.
Solar module products
a. This product must not be in contact with highly corrosive substances to avoid excessive bending and long-term bending;
b. The solar panel should be prevented from stacking and falling down, the solar flexible panel cannot be disassembled, do not collide with hard objects, avoid trampling, and avoid scratching the surface with hard objects during use;
c. A large number of scratches or dirt on the surface of the solar panel may result in low efficiency of the solar panel, which may seriously cause burnout;
d. The suitable ambient temperature range of solar panels: -20 ℃-80 ℃, do not exceed this range;
e. The solar panel must be installed in an area with good sunlight and no shadow. The solar panel may work in the shaded sunlight for a long time and there may be a risk of burnout;
f. When used in series connection, the "+" of the previous component is connected to the "-" of the next component. The same panel cannot be directly connected to the positive and negative poles.
