Flexible Solar Panel 200W 100W 19.8V Monocrystalline Charger Off-Grid 12V /24V Battery RV Boat Cabin Van Car Trailer (Front Bump
$633.58
Condition: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
Description:
Flexible Solar Panel 200W 100W 19.8V Monocrystalline Solar Cells Charger Off-Grid For 12V /24V Battery RV Boat Cabin Van Car Trailer (Front Bump）

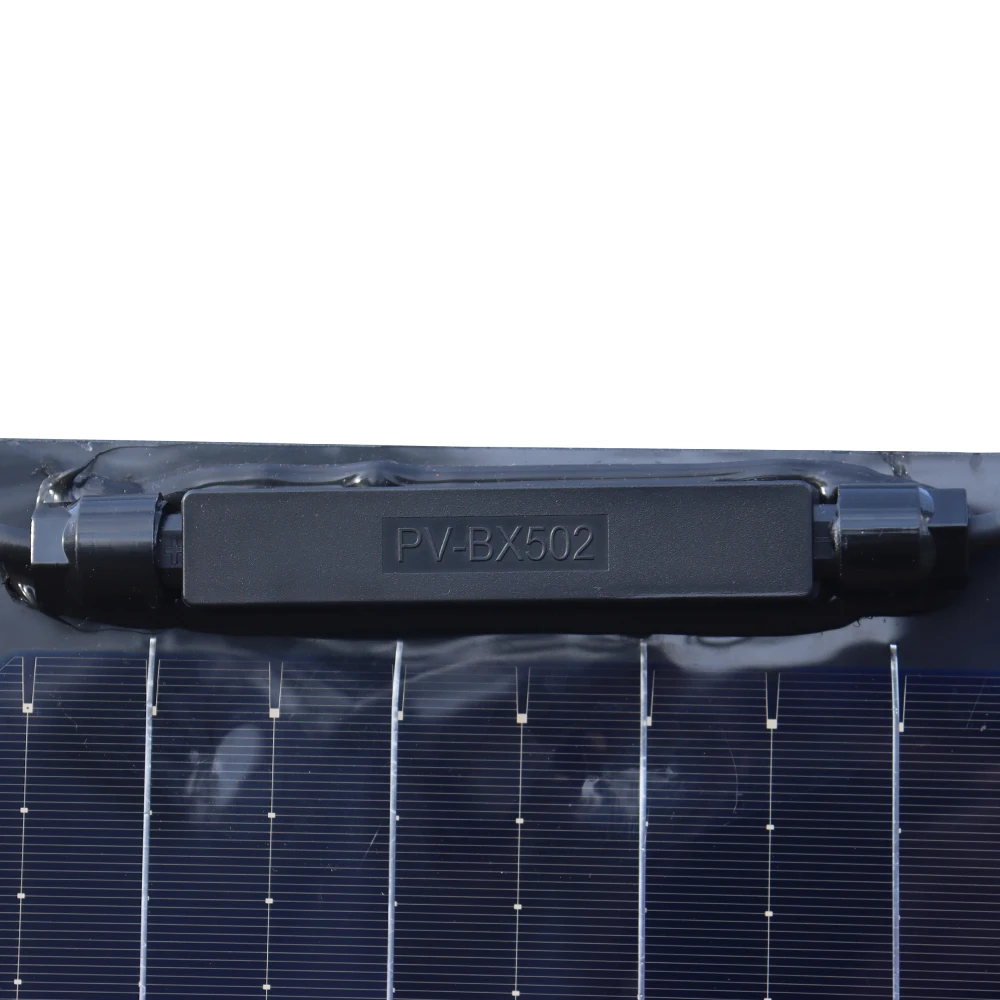

The solar panel junction box location has a bump.
But does not affect the normal use of solar panels
If you are interested in the appearance of solar panels, we recommend that you consider the following link
https://www.aliexpress.com/item/1005005816950038.html
Packing listing
1pcs 19.8V 100w flexible solar panel
or
2pcs 19.8V 100w flexible solar panel
Product specifications
Maximum power(Pmax) 100W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 23.7V
Short circuit current(Isc) 5.55A
Maximum power voltage(Vmp) 19.8V
Maximum power current(Imp) 5.05A
Cell efficiency 22%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 1950g
Size 1060*530*3 mm
Colour: Black
Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5
(The size is manually measured and there is a certain error.)
Advantages of XINPUGUANG PET Solar Panels:..Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.
It is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.
The surface is Plstic Cover Film Coating And Four EVA Layers, waterproof, snowproof, resistant to small hail..
By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with connectors comes with the panel automatically, Cable Length with About 900MM
The Solar Panel back Sidehas 6 drill holes that can be quickly installed.
18V 100W Solar panel Specification:
Maximum power(Pmax) 100W
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 6A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 5.5A
Weight 1.7KG
Size 1000*500*2.5mm
Operating temperature(NOCT) 45 plus or minus 2 Celsius system
STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.
Solar panels for charging 12V batteries generally require a controller to be used in conjunction with them.

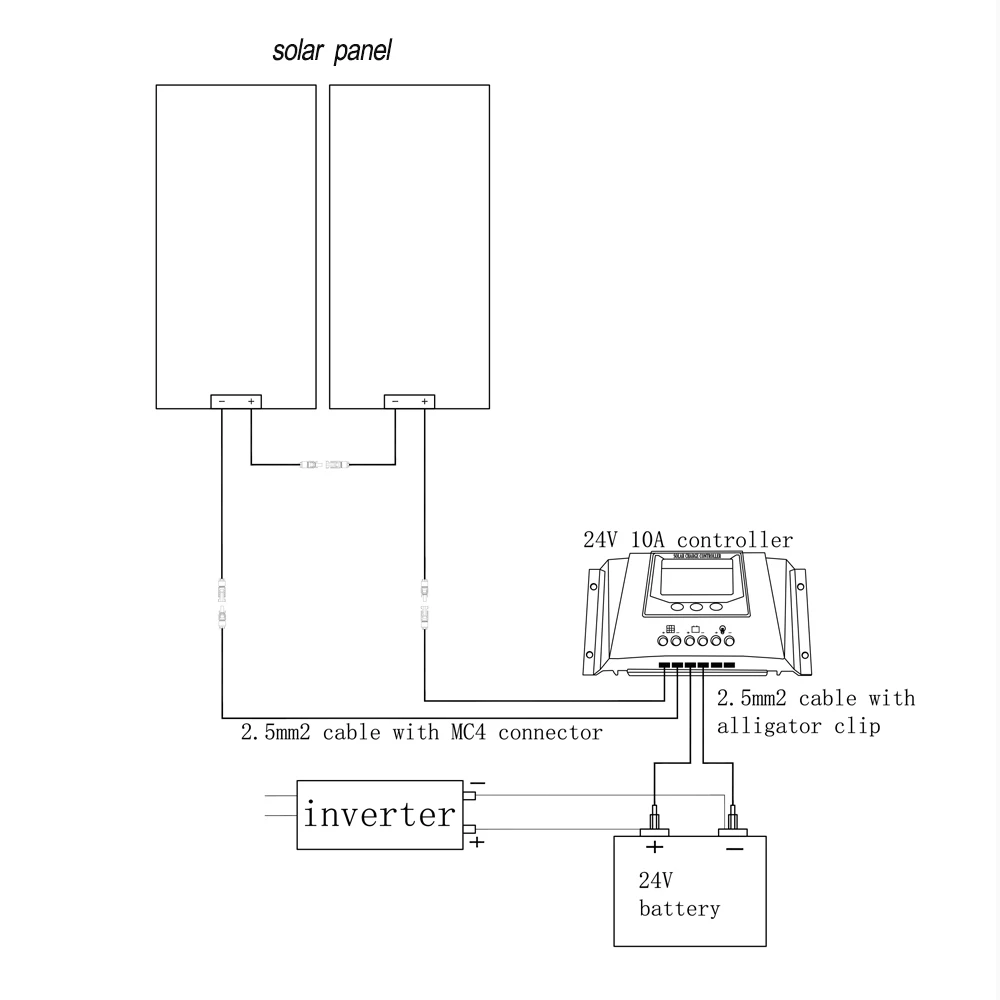

If it is a 24V battery that requires solar panel charging, at least two solar panels need to be configured to connect the solar panels in series.
12V 200W solar panel kit
Solar module products
a. This product must not be in contact with highly corrosive substances to avoid excessive bending and long-term bending;
b. The solar panel should be prevented from stacking and falling down, the solar flexible panel cannot be disassembled, do not collide with hard objects, avoid trampling, and avoid scratching the surface with hard objects during use;
c. A large number of scratches or dirt on the surface of the solar panel may result in low efficiency of the solar panel, which may seriously cause burnout;
d. The suitable ambient temperature range of solar panels: -20 ℃-80 ℃, do not exceed this range;
e. The solar panel must be installed in an area with good sunlight and no shadow. The solar panel may work in the shaded sunlight for a long time and there may be a risk of burnout;
f. When used in series connection, the "+" of the previous component is connected to the "-" of the next component. The same panel cannot be directly connected to the positive and negative poles.
Solar panel connection installation method
When you use a 12V battery, use a parallel connection; when you use a 24V battery, use two serial connections. Please install the solar panel on a smooth surface with good sunlight and no shadow, and try not to install it on uneven areas. Solar panels can be fixed with glue or bolts.
