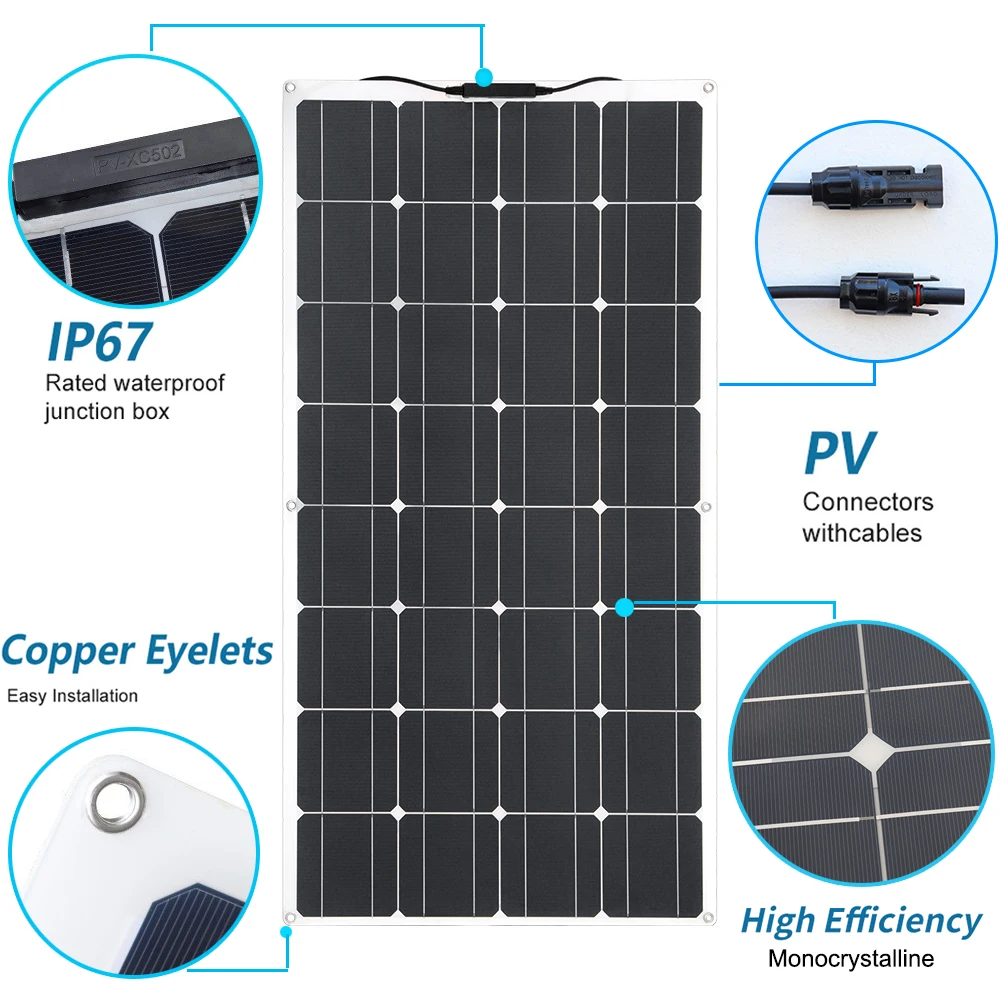

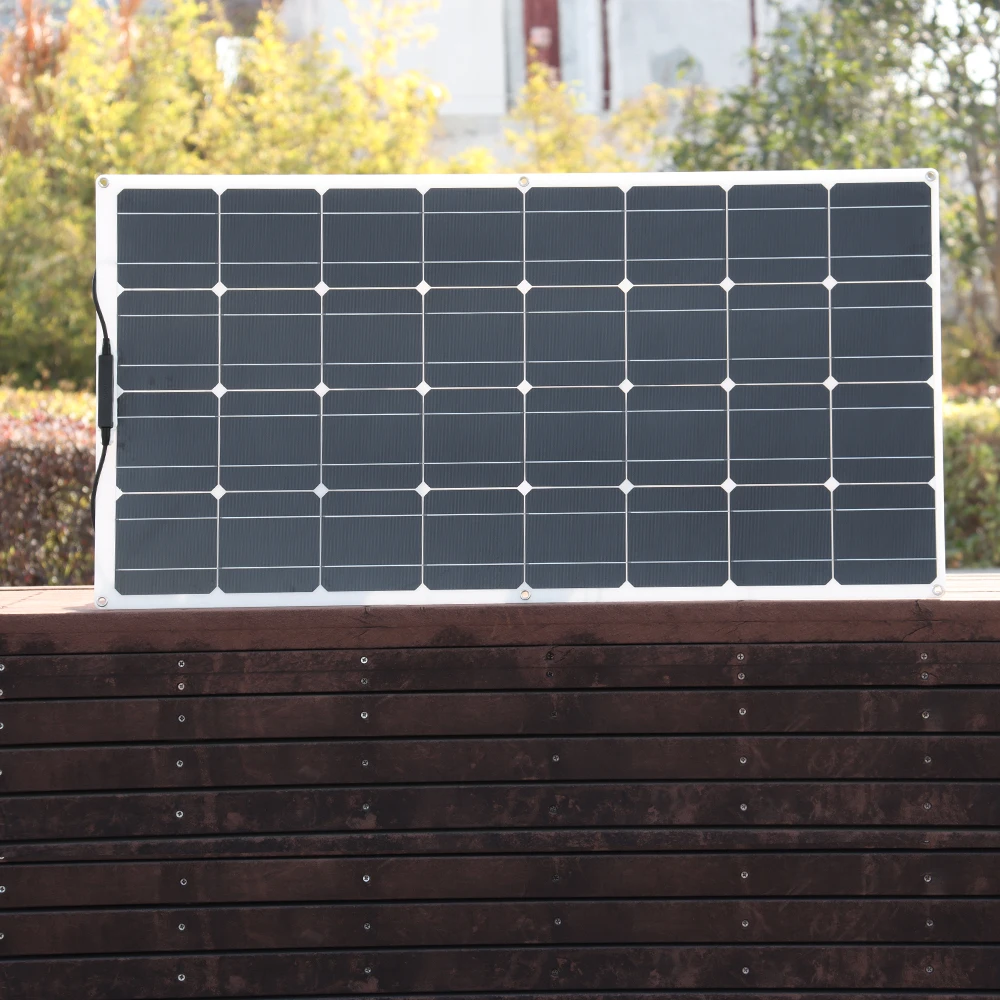

XINPUGUANG 100w Photovoltaic Flexible Solar Panel Monocrystalline placa Cell paneles solares for 12V 24V battery camping charge
$249.88
Condition: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
Description:
18V 100W Solar panel Specification:
Maximum power(Pmax) 100W
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 6A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 5.5A
Weight 1.7KG
Size 1000*500*2.5mm
Operating temperature(NOCT) 45 plus or minus 2 Celsius system
STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.
18V 100W Solar panel
16V 100W PET Solar Panel
Maximum power(Pmax) 100W
Output tolerance 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 19.2V
Short circuit current(Isc) 6.87A
Maximum power voltage(Vmp) 16V
Maximum power current(Imp) 6.25A
Cell efficiency 22%
Operating temperature（NOCT）45±2℃
Temperature range -20℃～+80℃
Number of cells 32pcs
Weight 1.9KG
Size 1050*540*3mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
（Protection）：The component contains a bypass diode, and the circuit uses input over current protection and reverse protection design
