1PCS~ 6PCS 100W Flexible Solar Panel Kit Module 100 W 200W 300W 400W 500W 600W 12V/24V Cell Battery Charger Home RV Plate China
$312.90
Condition: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
Description:
BOGUANG Solar Panel 1PCS~ 6PCS 100W Flexible Solar Panel Kit Module 100 W 200W 300W 400W 500W 600W 12V/24V Solar Panel Cell Battery Charger Home RV Plate China
16V 100W Solar Panel Specifications
Maximum power(Pmax) 100W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 19.2V
Short circuit current(Isc) 6.25 A
Maximum power voltage(Vmp) 16V
Maximum power current(Imp) 6.5A
Cell efficiency 21%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 32pcs
Weight 2000g
Size 41.34 inch * 21.26 inch * 0.1 inch(1050*540*2.5mm)
Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
Features:
1.[Excellent performance] Using high-quality monocrystalline silicon cells,
high-efficiency monocrystalline silicon solar cells provide good
performance even in low light conditions
high-efficiency monocrystalline silicon solar cells provide good
performance even in low light conditions

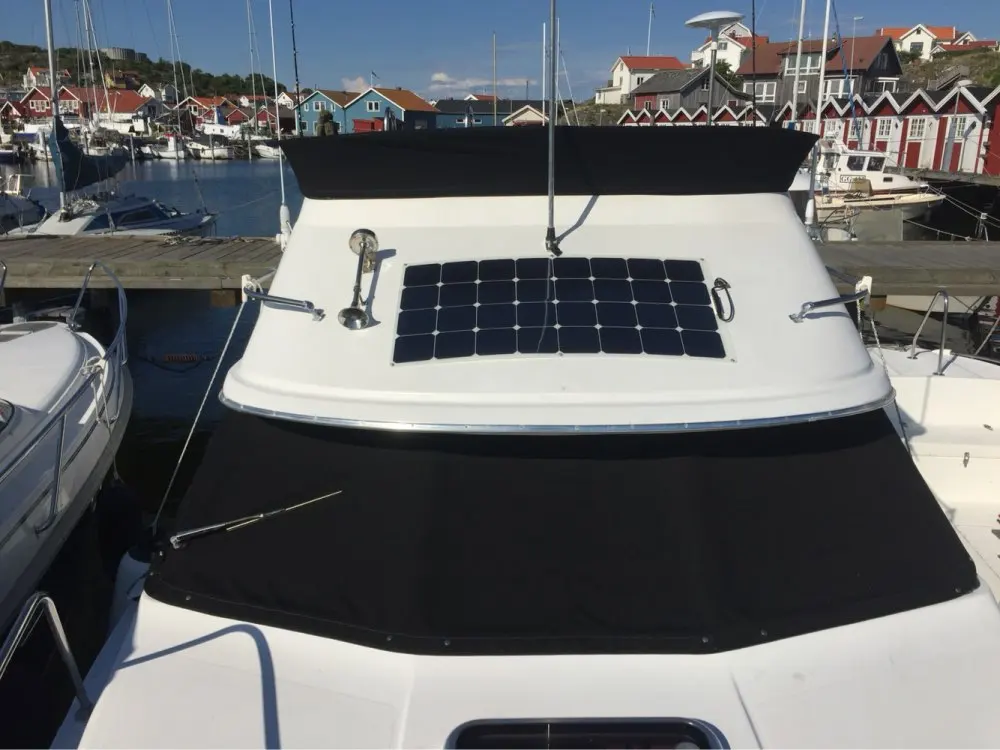

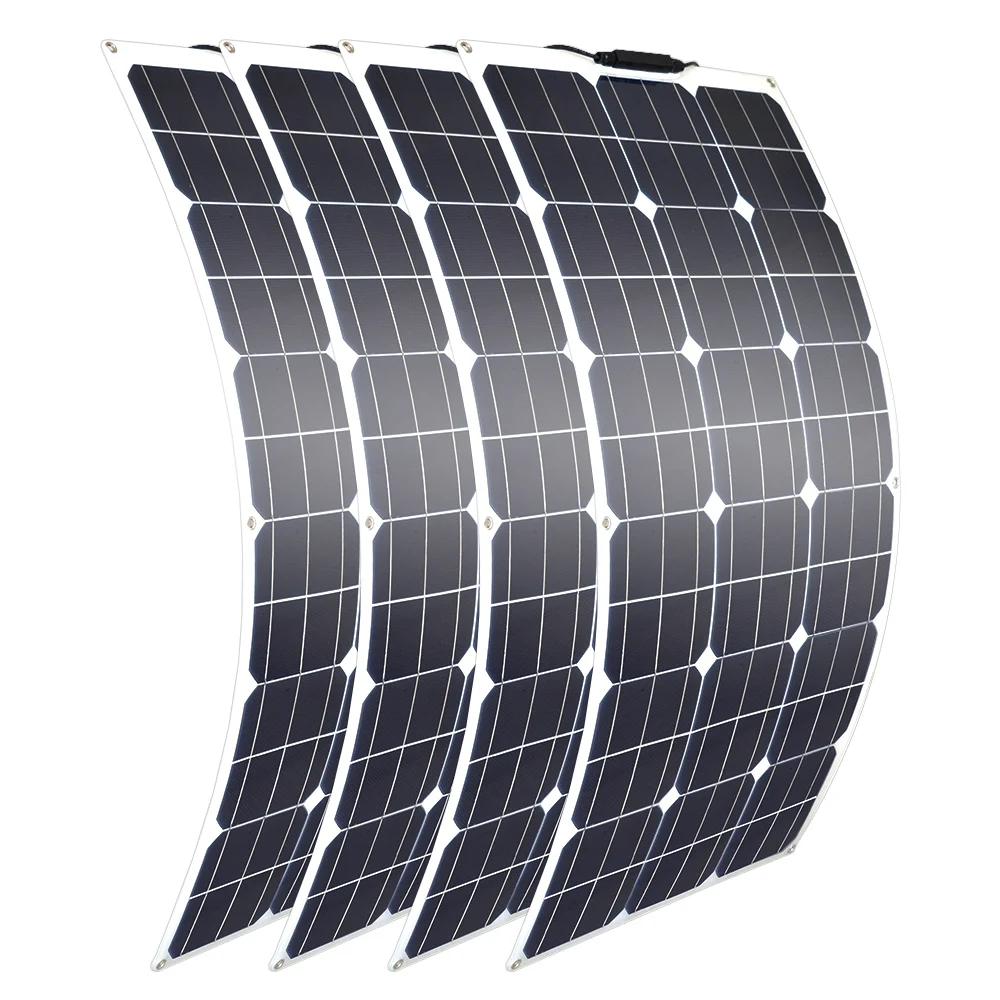

2.[Flexible] This flexible solar panel is a good choice for curved surfaces of RV,
boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer,
golf cart or any other irregular surface.
boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer,
golf cart or any other irregular surface.
3.[Practicality] Light energy converts electrical energy and has strong practicability.
It is a good supplement for power shortages and places where the city
power cannot reach, such as mountains, marine, deserts, etc.
It is a good supplement for power shortages and places where the city
power cannot reach, such as mountains, marine, deserts, etc.

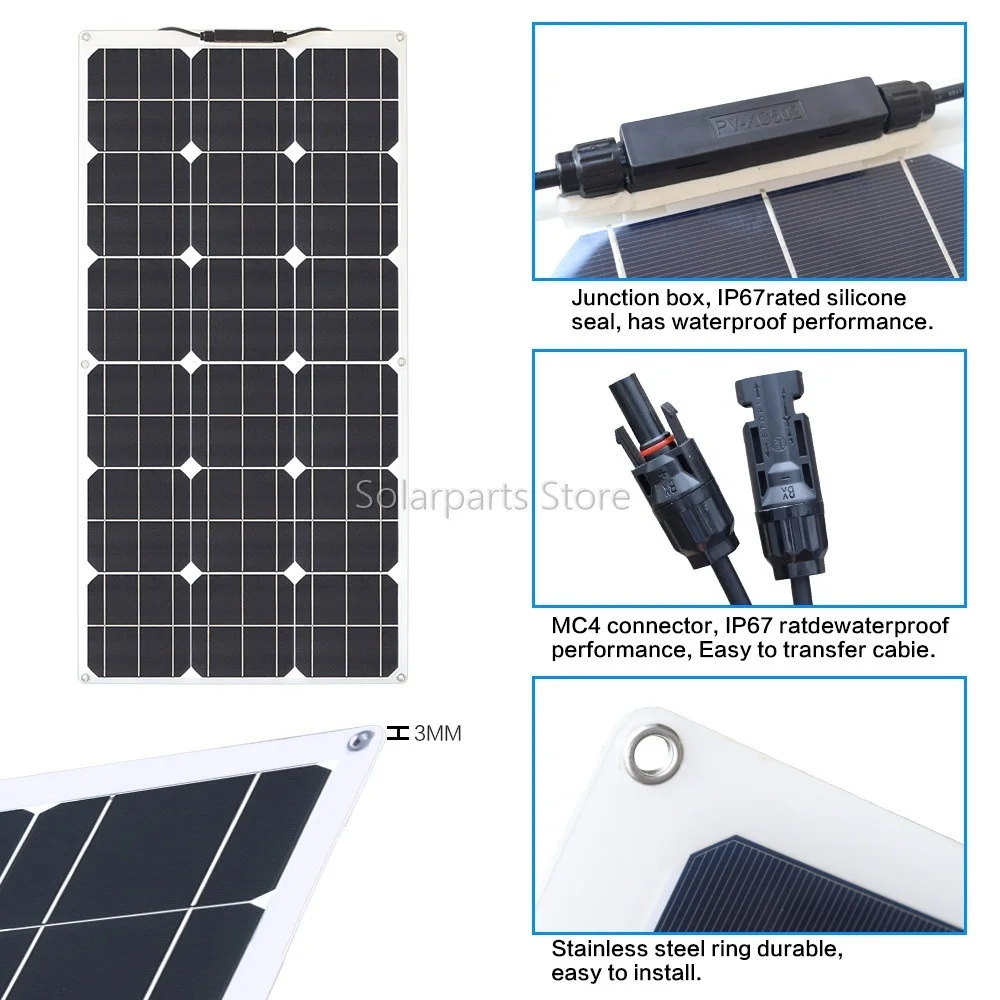

4.[Nice Details] The water resistant flexible solar panel is far more durable
than traditional glass and aluminum models; The junction box is sealed
and waterproof.
than traditional glass and aluminum models; The junction box is sealed
and waterproof.
5.[Easy Installation]The solar panel has 6 grommet mounting holes are available
to attach fasteners，and can also be installed with silicone and adhesive
tape. 12-month guarantee service.
to attach fasteners，and can also be installed with silicone and adhesive
tape. 12-month guarantee service.
Packing list
1 x 100W 16V Solar Panel (100W)
or
2 x 100W 16V Solar Panel (2pcs 100W)
or
3 x 100W 16V Solar Panel (3pcs 100W)
or
4 x 100W 16V Solar Panel (4pcs 100W)
or
1 x 100W 16V Solar Panel (12V 100W Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 X 10A Controller
or
2 x 100W 16V Solar Panel (12V 24v 200w Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 X 20A Controller
1 set 2 in 1 PV adapter
or
3 x 100W 16V Solar Panel (12V 300W Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 X 30A Controller
1 set 3 in 1 PV adapter
or
4 x 100W 16V Solar Panel (4pcs 100w Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 x 40A Controller
1 set 4 in 1 PV adapter
or
5 x 100W 16V Solar Panel (500w Solar Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 x 50A Controller
1 set 5 in 1 PV adapter
or
6 x 100W 16V Solar Panel (600w Solar Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 x 60A Controller
1 set 6 in 1 PV adapter
18V 100W Solar Panel Solar panel Technician Specification
Maximum power(Pmax) 100W
Output tolerance + 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 6A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 5A
Cell efficiency 23%
Operating temperature（NOCT） 45±2℃
Temperature range -20℃～+80℃
Number of cells 36pcs
Weight 1650G

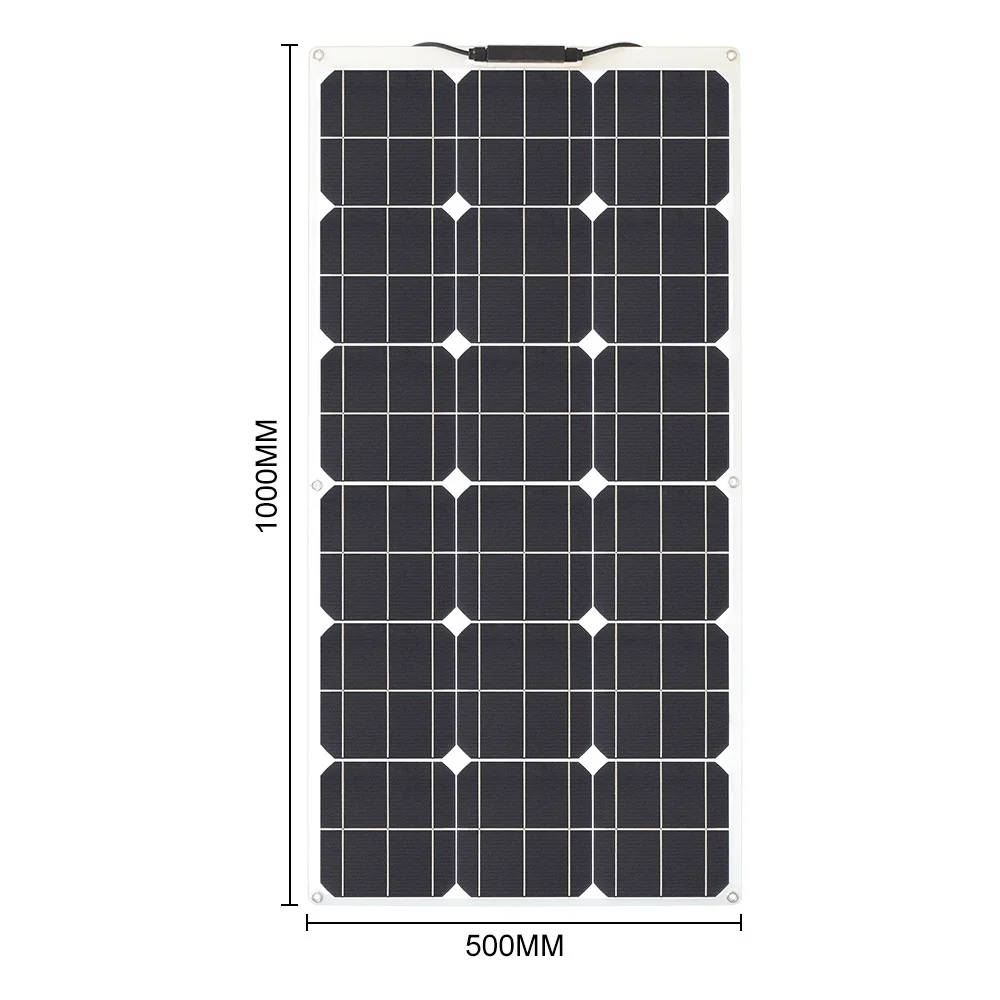

Size 1000*500*2.5 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
