XINPUGUANG 200 Watt Solar Panel Kit 12V / 24V 20A Charge Controller Extension Cable 200W Flexible Solar Panels Module for battery Charger

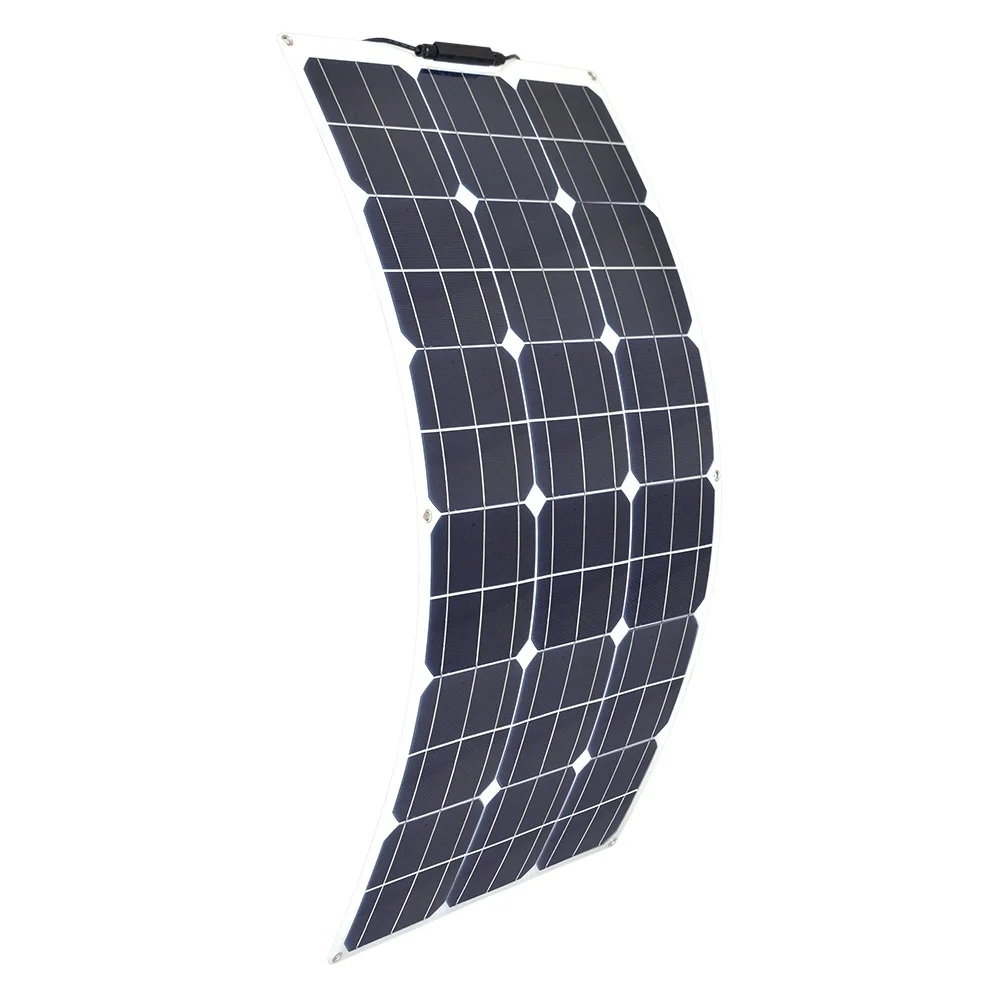

XINPUGUANG flexible solar panel make with high efficiency Monocrystalline cell ，23% convert efficiency， can be bended 30-40 degree, can be installed on the curved surface.just 80% lighter than the glass solar panel, 3mm thickness，easy to carry, easy to ship, easy to install.Applied to Golf car, Yacht, Boat , RV，Caravan , Electric car , Travel tourism car, Patrol car , roof , camping, roof power generations , tent , marine etc.

Packing listing:

1. 2pcs 100w solar panel

2. 1pcs 12v/24v/20A controller

3. 1 set 3m cable with PV connector(2.5mm2)

4. 1 set 1.5m cable with Alligator clip(2.5mm2)

5. 1 set 2 in 1 adapter

Solar panel Specification

Maximum power(Pmax) 100W

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Short circuit current(Isc) 6A

Maximum power voltage(Vmp) 18V

Maximum power current(Imp) 5.5A

Weight 1.7KG

Size 1000*500*2.5mm

Operating temperature(NOCT) 45 plus or minus 2 Celsius system

STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5

Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.

Standard Environmental Testing

STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5

Note:

The solar panel needs to be installed outdoors under the sunlight. The solar panel output power will vary depending on the sunlight illumination and temperature.
Solar panels have no power output indoors or on cloudy or rainy days or at night.

KEY FEATURES

1) Constructed by high quality material, eco-friendly, durable and sensitive.

2) High in power but sleek in size, it is the perfect item for off-grid applications. High efficiency, conversion rate 20-23%.

3) Emergency charging other 12V or 24v battery, suitable for 12V or 24V car/boat/motorcyle, etc. Wide range of applications (outdoor, forest, grassland and other power generation, charging, portable emergency charging)

4) Enjoy solar power , Power your RV on the road. Unique frameless design includes six metal reinforced mounting holes for easy installation

5) Sail with solar power and power up your camping gears.For continuous power supply as long as there has sun. Outstanding electrical performance under high temperature and weak light environments

6) Little noise, high efficiency, low malfunction. Rigorous quality control to meet the highest international standards CE,TUV

7) Portable and lightweight, easy for carrying.

8) Positive and negative leads equipped with PV connectors,Two bypass diodes minimizes performance drop due to partial shade,Built in blocking diode to prevent battery discharge at night


9) Best working time: 9:00-17:00 (sunny weather will be better)

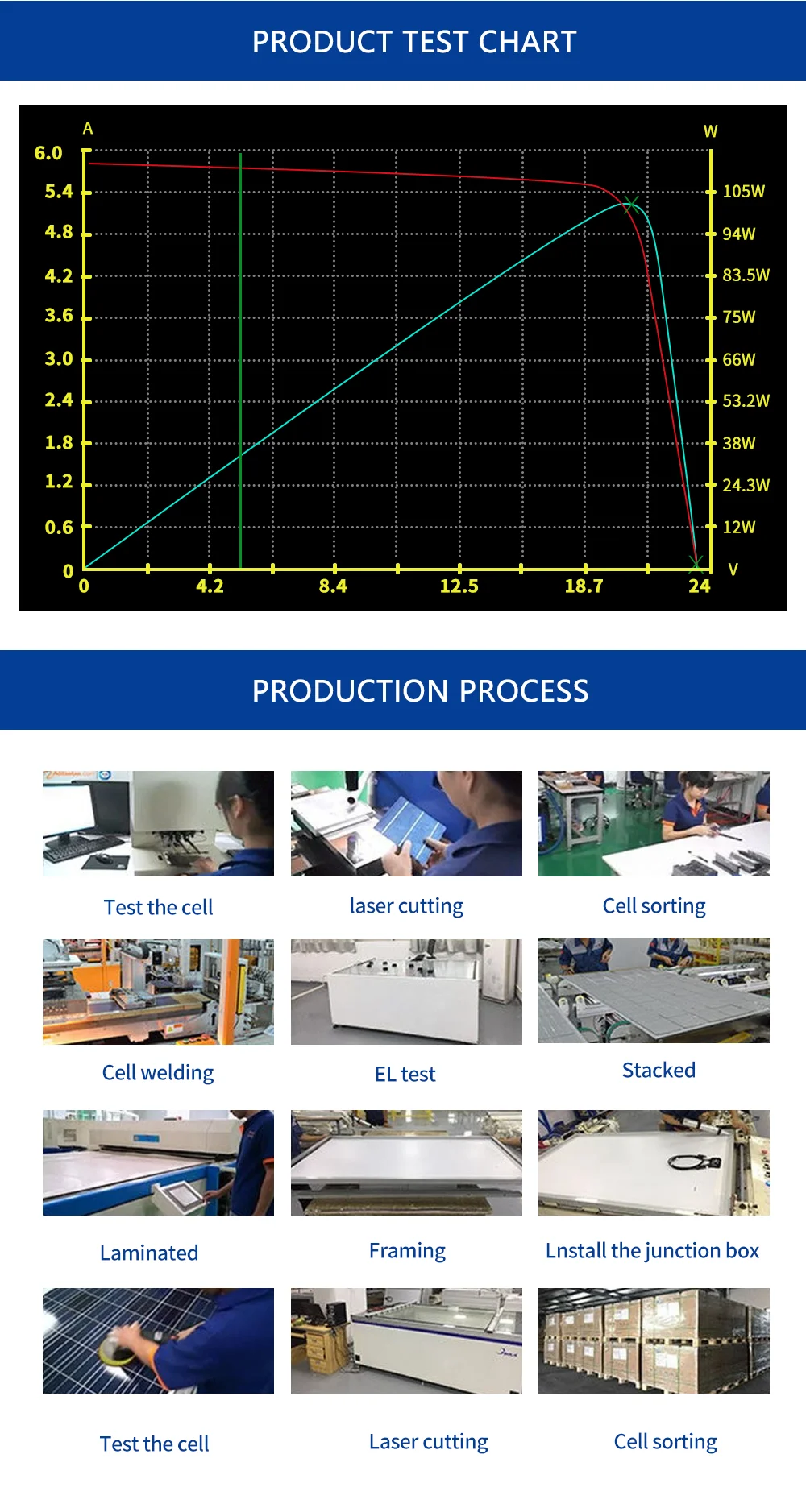

10) Strictly quality control ensure the stability and reliability, totally 23 testing procedure to do quality control

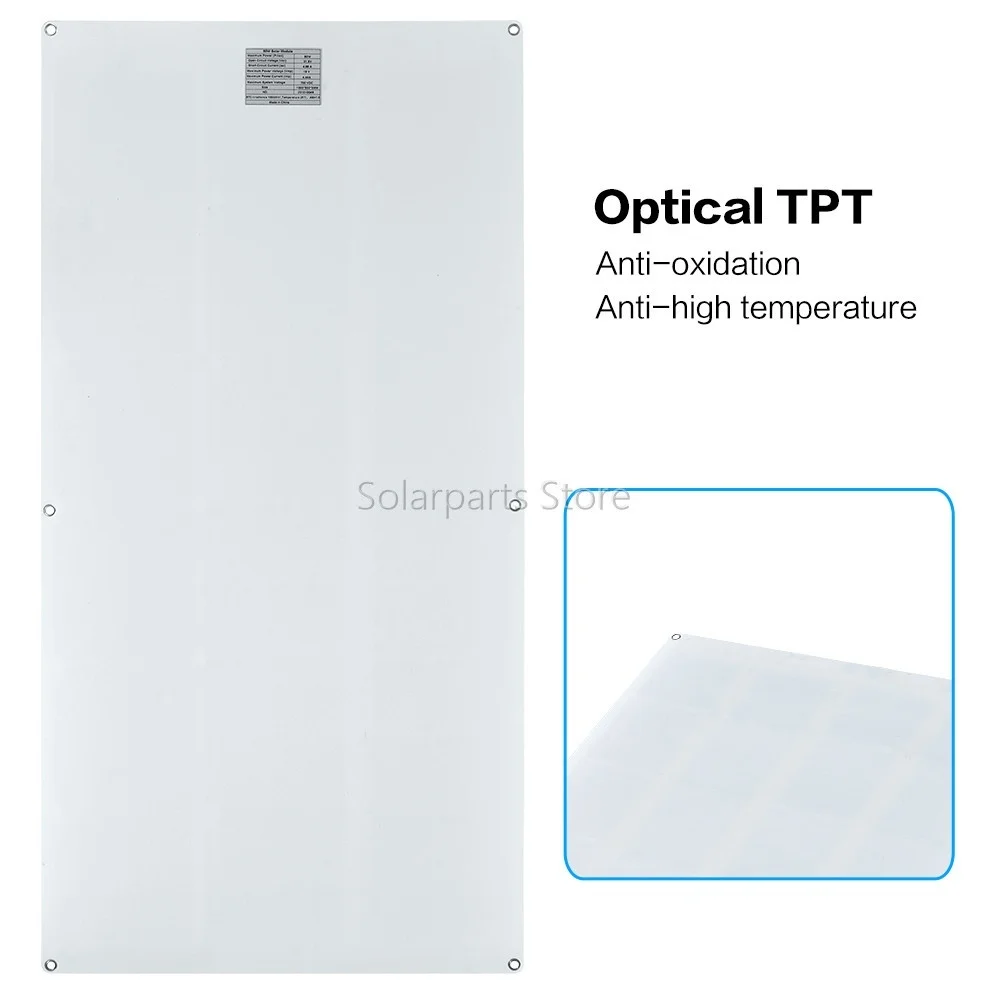

11) High transmittance, flexible lamination material is less prone to cracking than traditional glass

12)Set up easily:
Can be conveniently placed on curved solid surfaces
Lighter and thinner ,only 2mm thick .

Notes: Please confirm your address and contact information, if you have any problem, please contact us by Conversations, Our price doesn't including the import customs duties, the buyer should cooperate with the logistics company for the customs clearance.

NOTE:

When there is no sunshine, the light intensity decreases to starting point. Then the controller recognizes the starting signal after six minutes. The load will start to work according to the setting parameter. When there is sunshine, the light intensity rises to starting point, and then the controller recognizes the close signal after six minutes. The load will stop working.

Solar system kit wiring method and precautions

1.The solar system kit connection is divided into parallel connection or serial connection. The controller must be first connect the battery , and then connect the solar panels.

2.When the solar panels are connected in series or in parallel, paid to the highest PV input voltage of the controller. The voltage connected in parallel to the controller after the series connection cannot exceed the maximum input voltage of the controller.

3.The total input power of the solar panel can't be greater than the rated power of the controller, otherwise, there is a risk of burning the controller.

4.When the cable is connected to each component, the connection should be stable and there should be no looseness.

5.The positive and negative poles of the controller and battery should be checked clearly. Do not reverse the positive and negative poles.

6.When the power rating of one controller is insufficient to meet all solar panels, multiple controllers can be simultaneously connected to the battery.
