120W 150W 180W MPPT Solar PV On Grid Tied Micro Power Inverter DC10.8-30V to AC110V-230V 50HZ/60HZ Waterproof IP65
$190.65
Condition: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
Description:
NEW MPPT Solar Grid Tie Micro Inverter Solar PV inverter PVGS 120W 150W 180W DC10.8V-30V to AC110V-230V 50HZ/60H
Description:
120W/150W/180W Grid Tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.

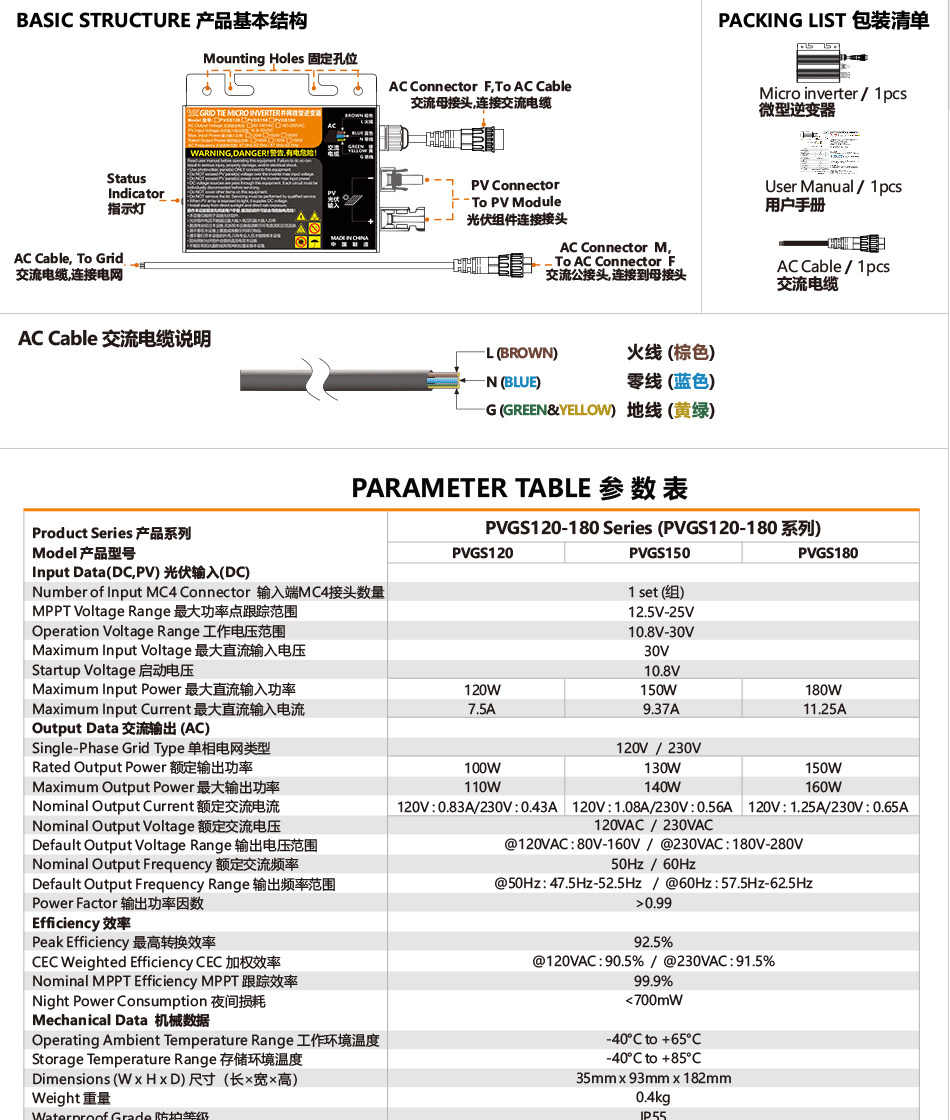

Specifications:
Grid Tie Inversor Maximum Output Power:120W/150W/180W
Rated Output Power:100W/130W/160W
DC Input: 10.8V-30V(120W/150W/180W)
AC Output Voltage: 120V/240V
Frequency Range: 50/60HZ Auto
MPPT Voltage Range:16V - 25V.（Working voltage Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency）.
Solar Panel Voltage: Vmp16-21V; Voc20-24V
Solar Panel Power: maximum 120W/150W/180W
Certification:CE
User notice：
• Use solar panel ONLY connect to this equipment.
• This equipment is ON-GRID Microinverter, To make it work properly, it must be connected to the power grid correctly,and the power grid is working properly, When the power grid stopped working, it will also stop generating.
• Do NOT exceed PV panel(s) voltage over the On Grid Tie Inversor max input voltage.(Voc<30)
• Do NOT exceed PV panel(s) power over the On Grid inverter max input power.（120W/150W/180W）
• The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be careful about this problem.
• Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)
About voltage：
Recommended Solar Panel Voltage: Vmp16-21V; Voc20-24V(120W/150W/180W)
LED DISPLAY:
1.Green light steady=Microinverter in generating.
2.Red flash=Microinverter in waiting.
3.Red light steady
a.Island protection.
b.Over-temperature protection.
c.Over/low AC voltage protection.
d.Over/low DC voltage protection.
e.Over/low AC frequency protection.
f.Fault.
Package Include:
1XGrid Tie Inverter
1 x AC Cable 20CM
1 x English User's Manaul
