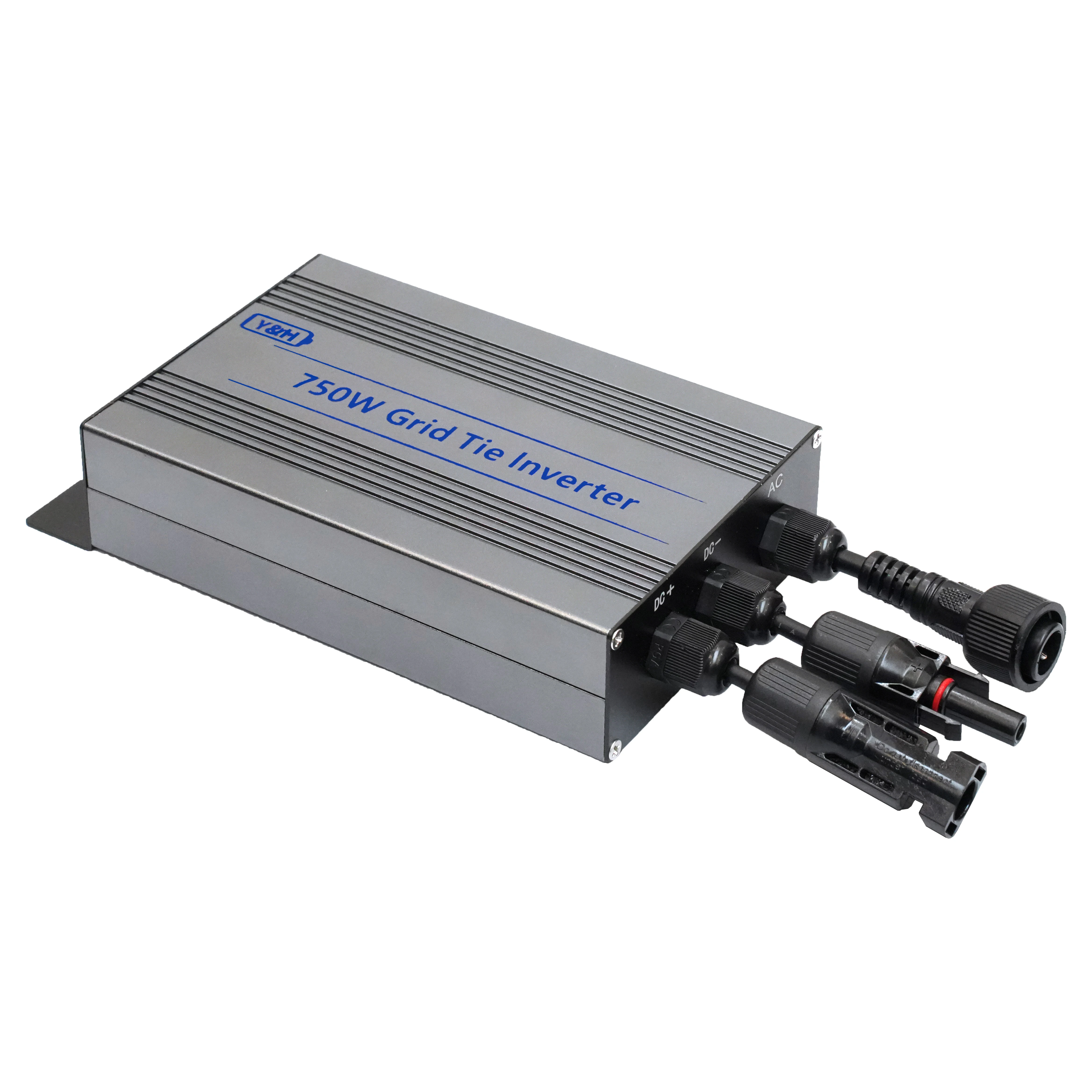

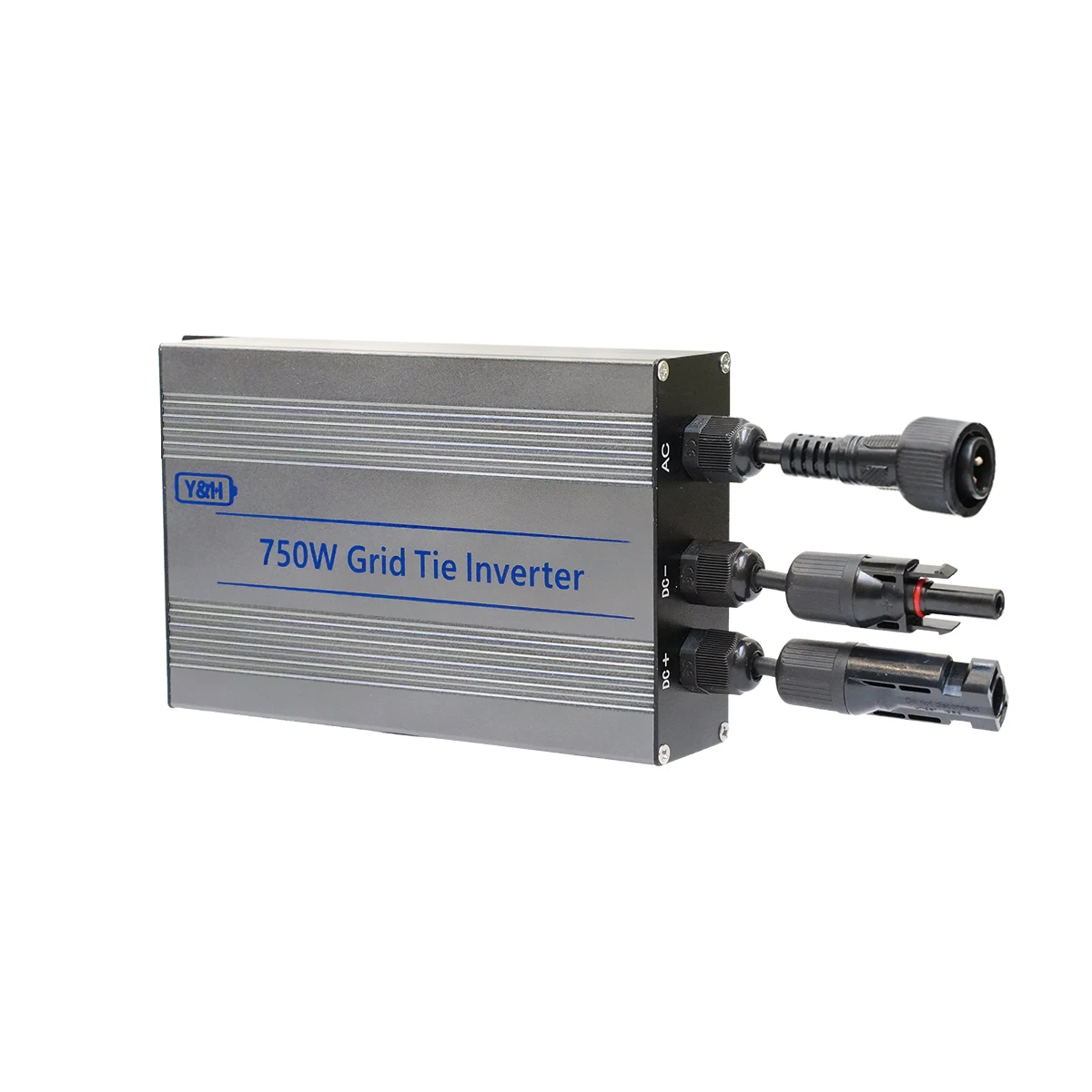

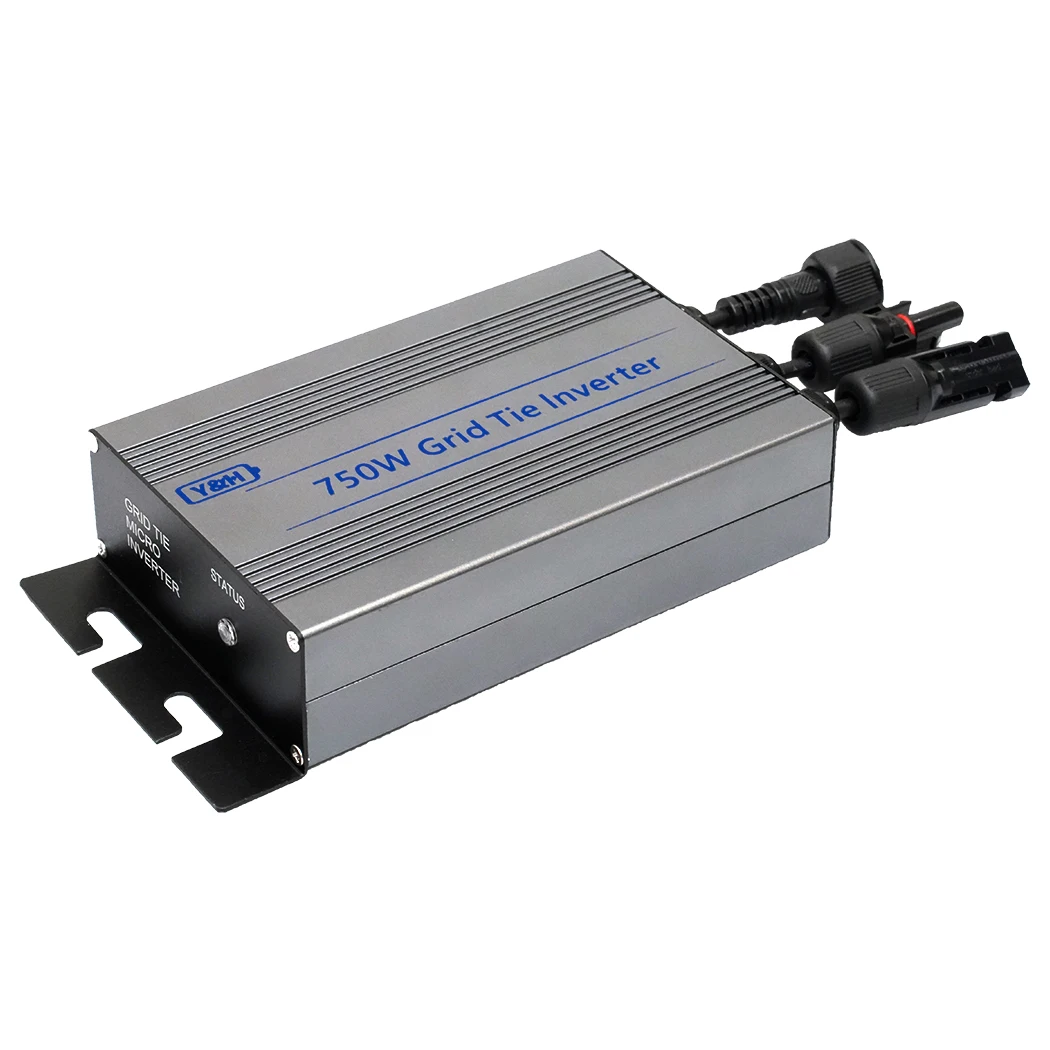

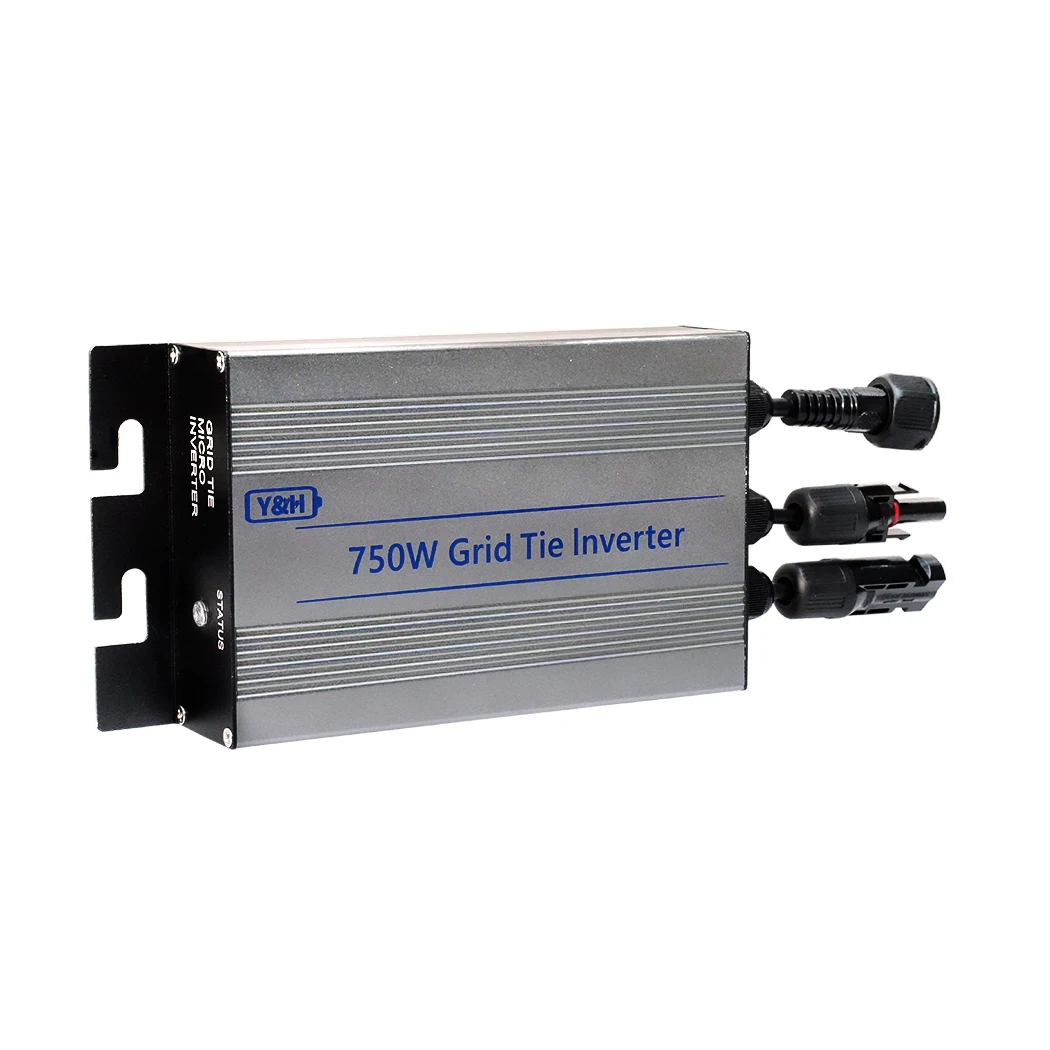

Y&H MPPT Micro Inverter 750W Grid Tie Inverter Solar Panel Input 24-60V AC110V AC220V Output for 24V 36V Solar Panel
$215.76
Condition: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
Description:
Description:
Y&H 750W Grid Tie inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.
Voltage tips:
Our 750W microinverter requires a starting voltage of 24V and has an operating range of 18V-42V (Vmp). Please note that the Voc of the solar panel should not exceed 60V.
It is not recommended to use 12V solar panels with a Vmp of 18-20V and a Voc of 20-24V, because weak sunlight may cause the operating voltage to drop below 18V, causing the inverter to work unstable and be damaged. Instead, we recommend using a 24V solar panel with a Vmp of 30-42V and a Voc of 38-60V for optimal performance
Solar inverter parameters：
Maximum Output Power:750W
Rated Output Power:650W
MPPT Voltage Range:24-42V
Recommended PV Panel Voltage: Vmp30-39V; Voc38-60V
Solar Panel Power maximum:750W
AC Output Voltage:190V-280V
Frequency Range:50/60HZ Auto
Output waveform:Pure sine wave
